Motion Control – High Precision, Low Profile, Compact 40 mm Motorized Rotary Stages!

Motion Control – 40 mm Diameter Rotary Stage!

motion control - gimbal mount
motion control - stage

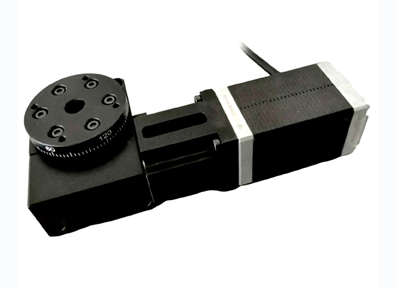

Van Nuys, CA – Motion Control – The AY110-40-01 Rotary Stage (pictured) from Optimal Engineering Systems, Inc. (OES) offers the users a high precision, low profile, compact motorized rotary stage. This precision stage with a diameter of 40 mm (1.575 in.) table is just 30 mm (1.181 in.) high and the footprint is only 133 mm by 57.5 mm (5.236 in. by 2.264 in.). The stage has an 8 mm (0.314 in.) aperture, a vernier scale, and a pattern of threaded mounting holes in the rotary table, and holes in the base for easy integration into new and existing applications.

The range of travel of this AY110-40 Rotary Stage Series is 360 degrees and it is capable of continuous rotation. The table is driven by a high precision 64:1 worm gear and has a resolution of 0.028126 degrees without a micro-stepping driver. The AY110-40-04 Stage has replaced the knob for manual adjustments with a Quadrature Optical Encoder for position verification.

The low cost, low profile AY110-40 Rotary Stage Series is ideal for: Microscopy, laser positioning and machining, inspection, assembly, testing, and other critical applications. This black anodized stage has a load capacity of 5 Kg (11 lbs) and there is an indicator scale for visual observation of the angle of rotation. The stage can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball and keypad control, and fully compatible single or multi-axis controller.

About OES – Optimal Engineering Systems, Inc. (OES) is a manufacturer of motion control products including: Stepper motor controllers and drivers, solenoid electronics, and positioning stages and slides. Applications include: Animation, automated assembly systems, automation, CNC machines, flight simulation, inspection systems, linear and rotary stages, machine tools, medical devices, motion control camera boom systems, optical comparators, CMMs, pan-tilt gimbals, PCB assembly & inspection, pick-and-place, positioning stages, robotics, scanners, security cameras, telescope drive mechanisms, time-lapse photography and winders.

Some of the industries OES serves are: Aerospace, Astronomy, Chemical, Communications, Educational Institutes, University, Colleges, Government Agencies, National Labs, Manufacturing, Medical, Metrology, Military, Motion Control, Museum, News Agencies, Semiconductor and Test Equipment. Optimal Engineering Systems, Inc’s. competitive advantage is its state-of-the-art in-house manufacturing facility in North America enabling OES to supply clients with custom designed orders or high volume just-in-time deliveries globally.

For additional information, contact sales team at: OES, 6901 Woodley Ave.; Van Nuys, CA 91406; Telephone: 888-777-1826 or +1 818-222-9200, FAX +1 818-436-0446 or E-Mail: or visit the website at
